3WL1106-3DG36-5F

3WL1106-3DG36-5F

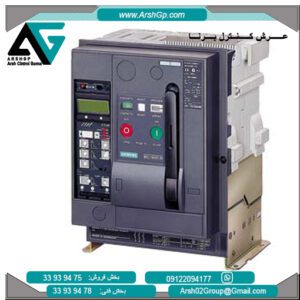

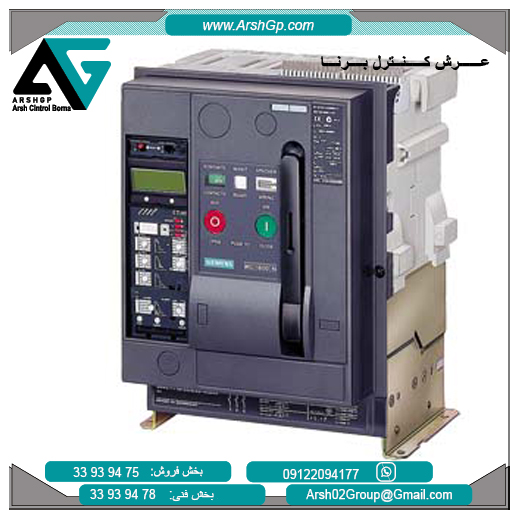

withdrawable circuit breaker with guide frame 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 110-127 V AC or 110-125 V DC Activation 50/60 Hz 110 V AC, 110 V DC With 1st auxiliary release Shunt release “F”, F1 50/60 Hz 110 V AC/110 V DC, 100% on-load factor without 2nd auxiliary release 4NO+4NC B05= Rated current reference module 500 A for ETU25, 27, 45, 55, 75, 76 for setting rated current in C20= Spring charge status indicator not possible with option F02 K07= Tripped signaling
contact, 1 CO not possible with option F02 R21= Shutter 2-part can be locked with padlock T40= Door sealing frame
کلید هوایی 3 پل زیمنس، 66 کیلو آمپر، دارای کنتاکت کمکی 4 باز + 4 بسته
وضعیت: موجود
ساخت زیمنس آلمان
قیمت: تماس بگیرید
خانواده: کلید هوایی
